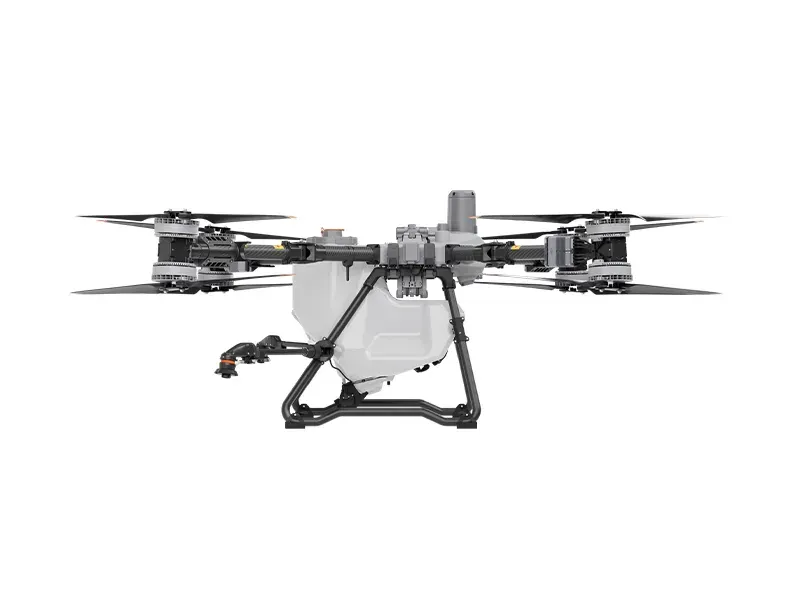

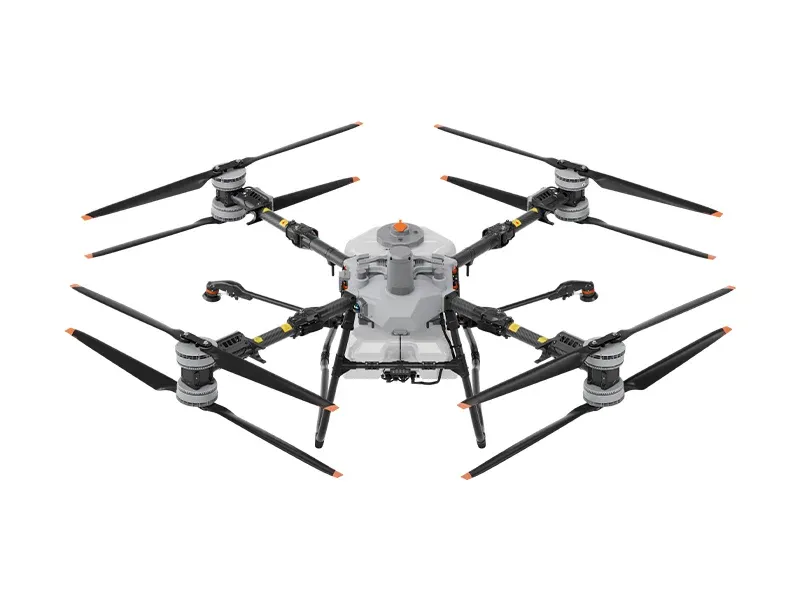

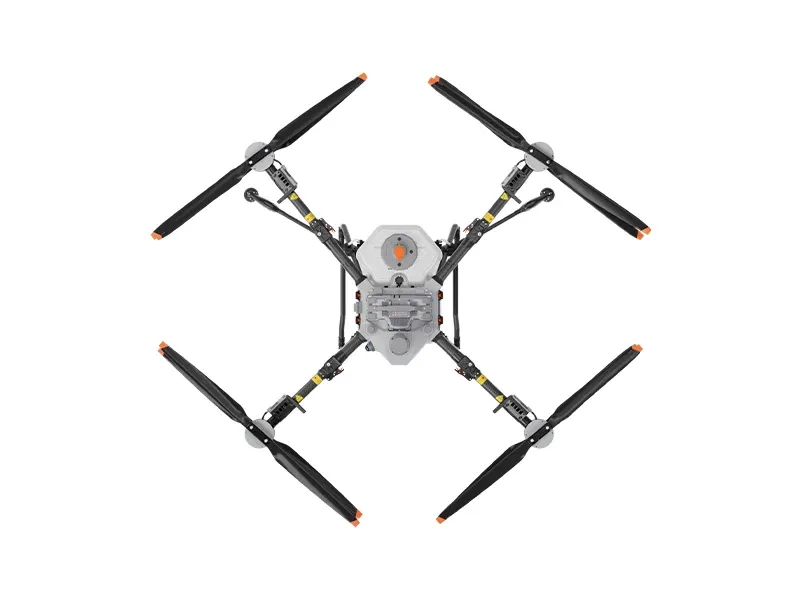

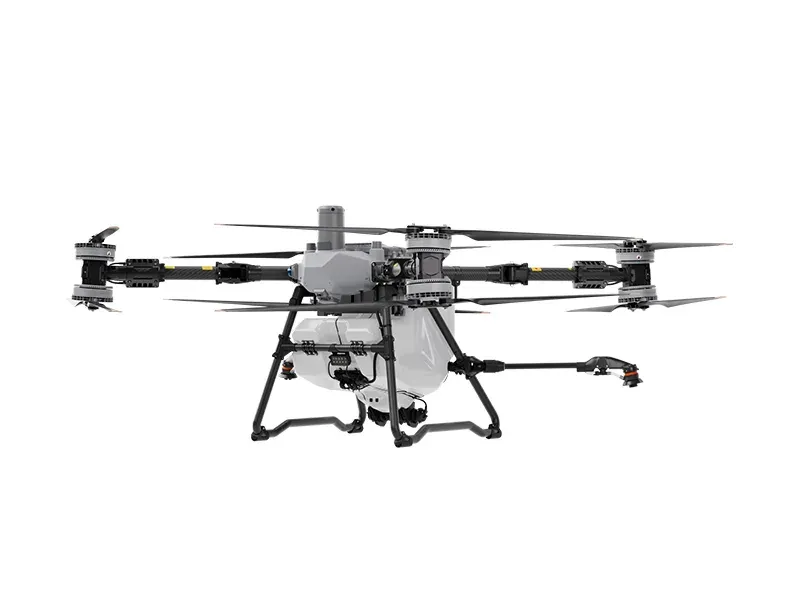

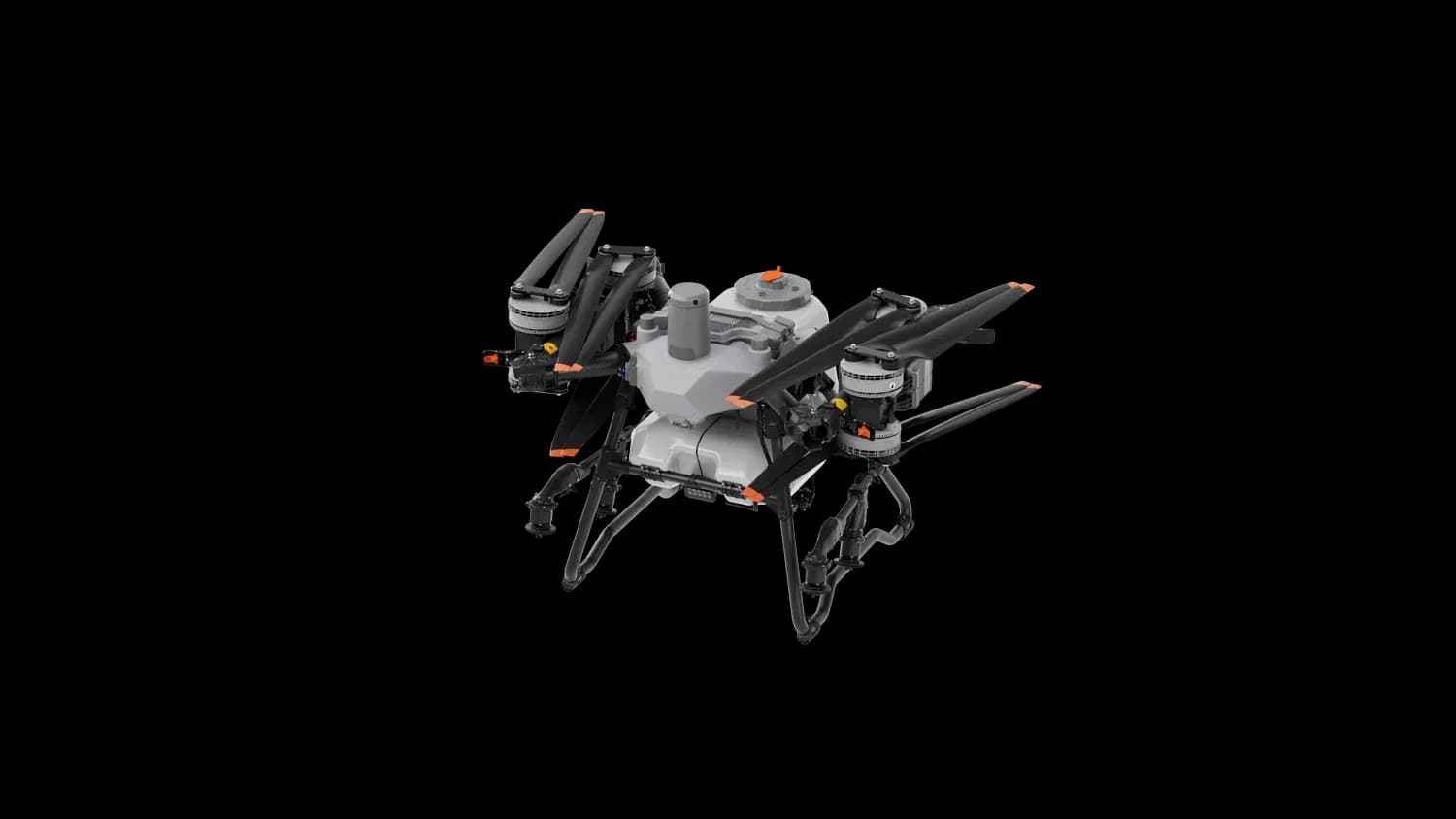

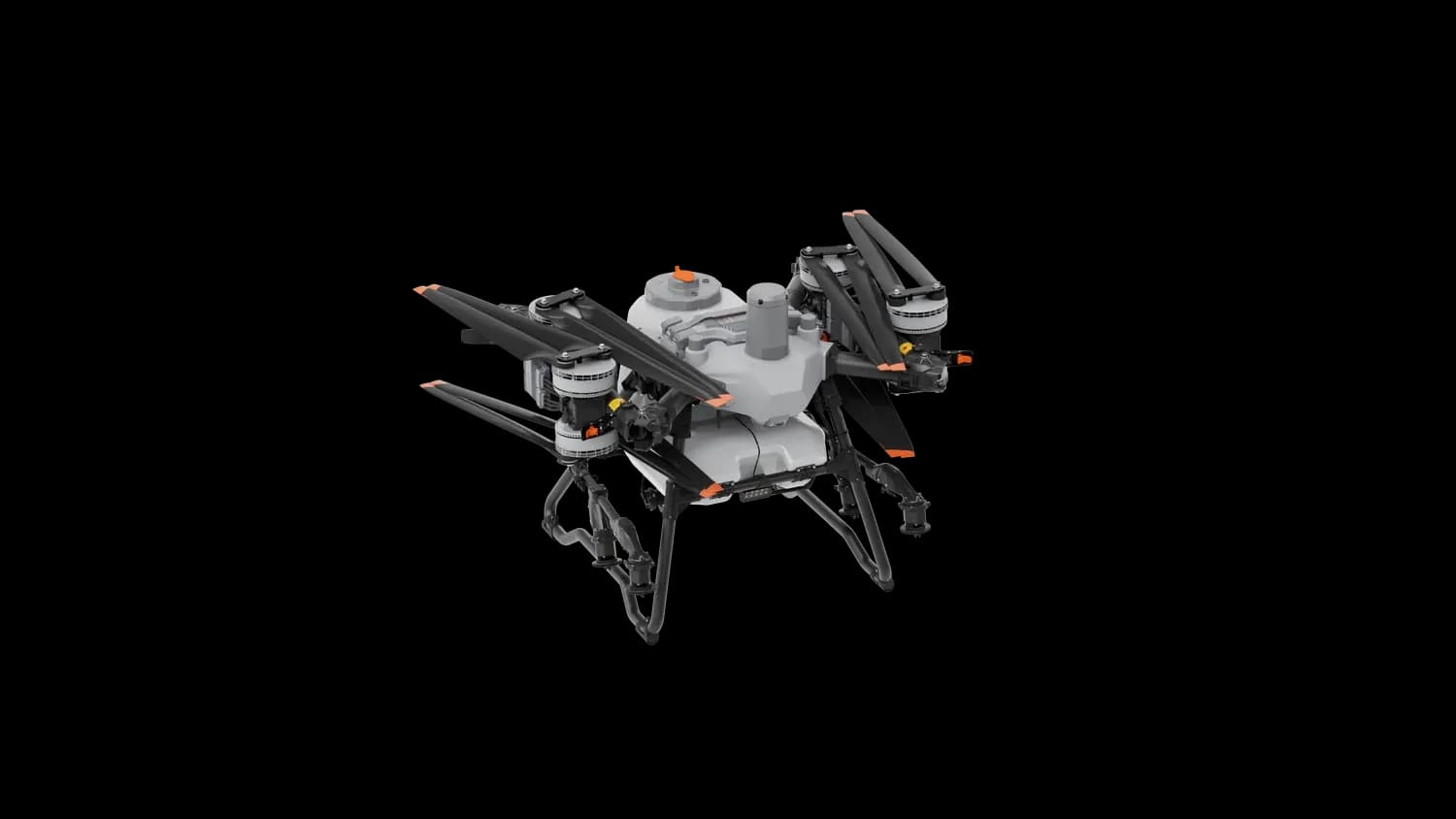

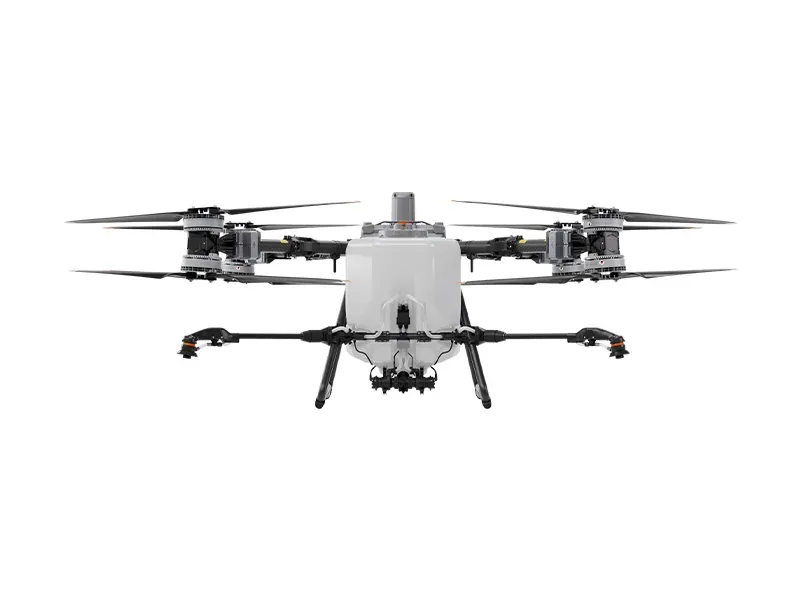

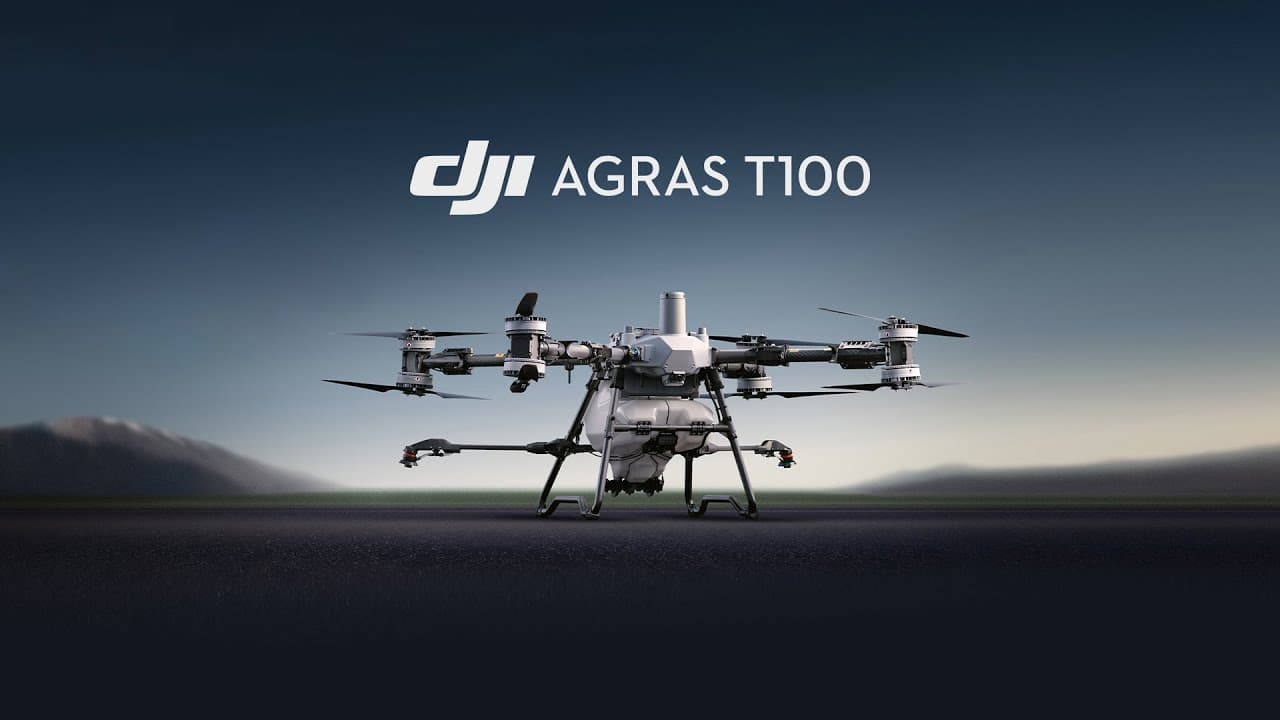

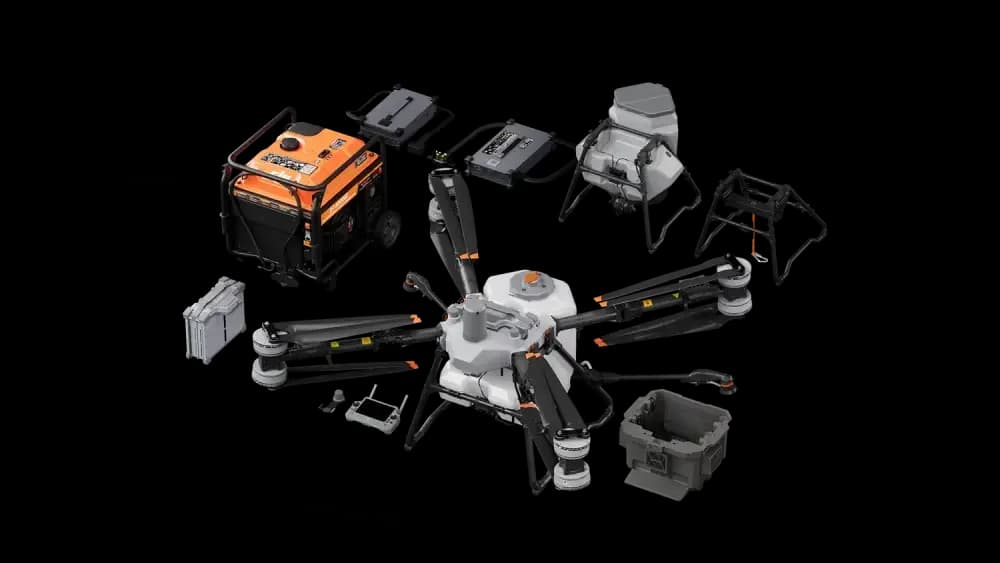

Agras T100

Aircraft

• Maximum Takeoff Weight: Up to 177 kg
• Diagonal Wheelbase: 2330 mm
• Propellers: 62-Inch Carbon Fiber
• Maximum Operating Speed: Up to 20 m/s
• RTK Positioning: Supported
• GNSS: GPS + RTK Positioning System
• Safety System: Safety System 3.0

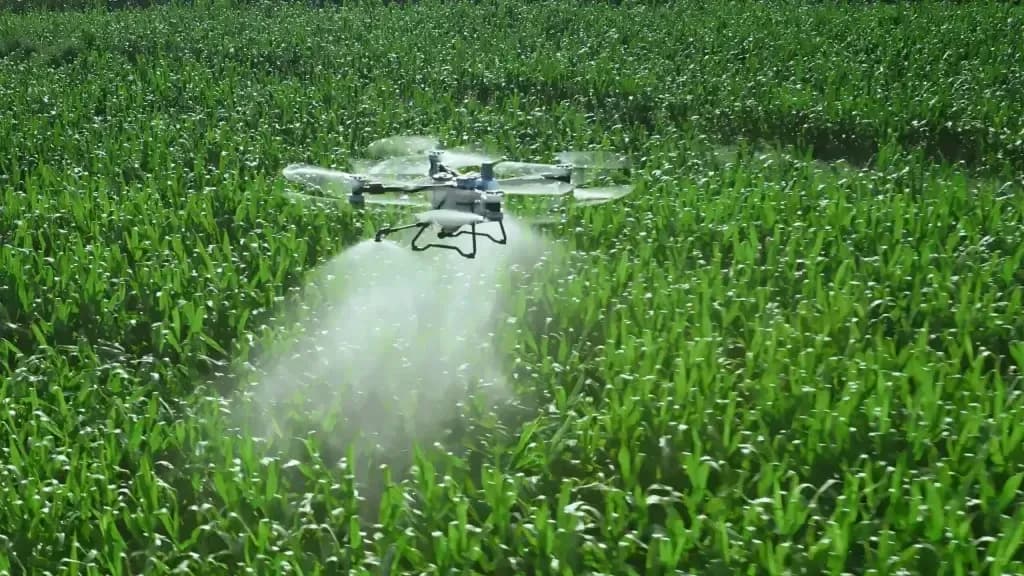

Spraying System

• Tank Capacity: 100 L
• Operating Payload: 100 kg
• Standard Flow Rate: 30 L/min
• Maximum Flow Rate: 40 L/min
• Spray Width: 5–11 m
• Droplet Size: 50–500 μm
• Pump Type: Magnetic Drive Impeller Pump

Spreading System

• Tank Capacity: 150 L
• Payload Capacity: 100 kg
• Maximum Discharge Rate: 400 kg/min
• Material Size: 0.5–10 mm
• Spreading Width: 3–10 m
• Interchangeable Auger System: Supported

Lifting System

• Maximum Lifting Capacity: 100 kg
• Lifting Rope Length: 10 m
• Transport Operations: Supported
• Agricultural & Utility Applications: Supported

Safety System 3.0

• LiDAR Obstacle Detection
• Penta-Vision System
• Millimeter-Wave Radar
• 360° Obstacle Avoidance
• Terrain Following
• Power Line Detection
• Automatic Obstacle Bypassing

Mapping & Intelligent Features

• Automatic Field Mapping
• Field Route Planning
• Variable Rate Application
• Smart Agriculture Workflows
• One-Tap Operation
• Intelligent Terrain Tracking

FPV Camera

• Penta-Vision Camera System
• Real-Time Monitoring
• Night Operation Support
• Electronic Stabilization

Battery

• Battery Model: DB2160 Intelligent Flight Battery
• Capacity: 41,000 mAh
• Recharge Time: 8–9 Minutes
• Fast Charging Station: D14000iE Compatible

Remote Controller

• Model: DJI RC Plus 2
• High-Brightness Display
• RTK Support
• Agricultural Mission Planning
• Enterprise Flight Control Interface
