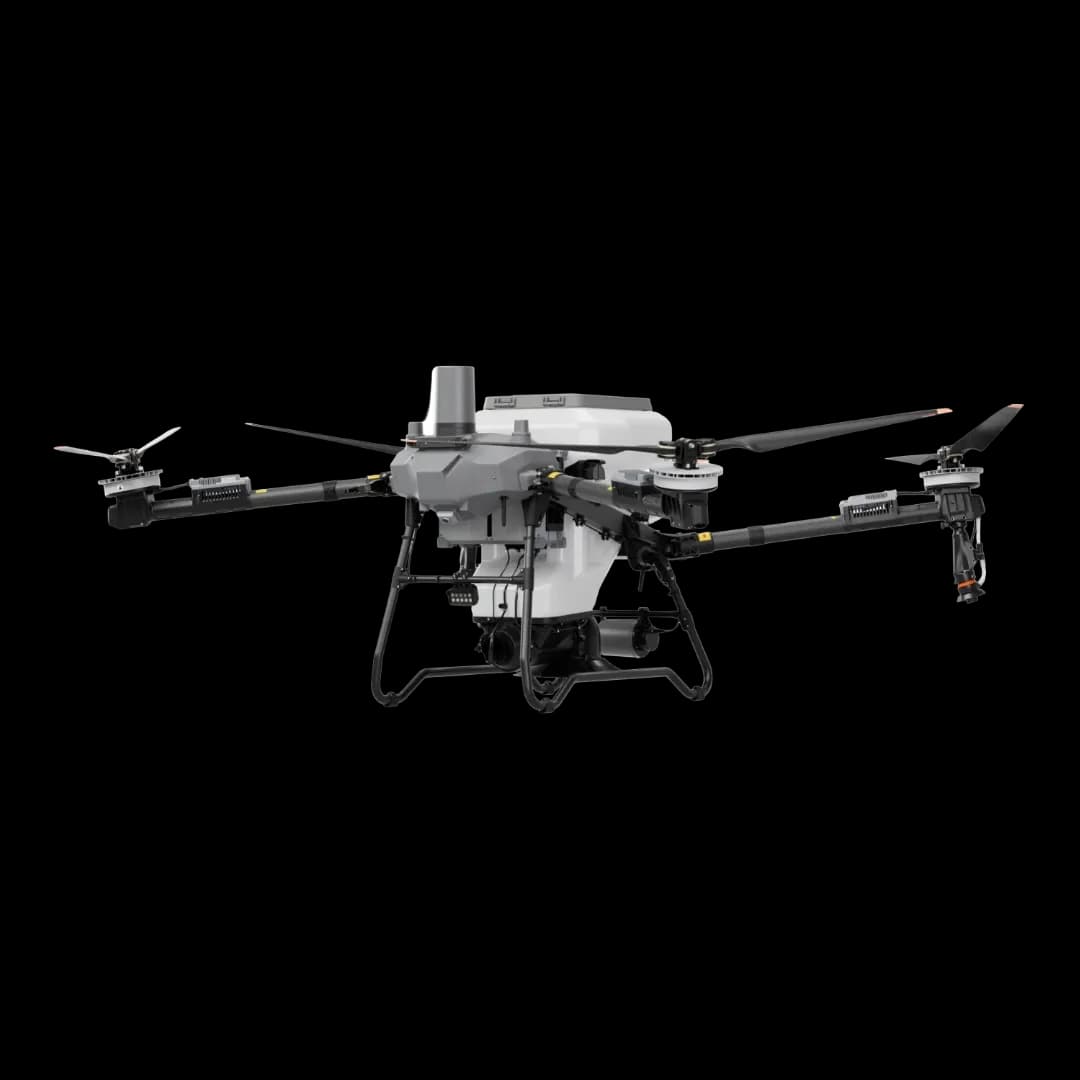

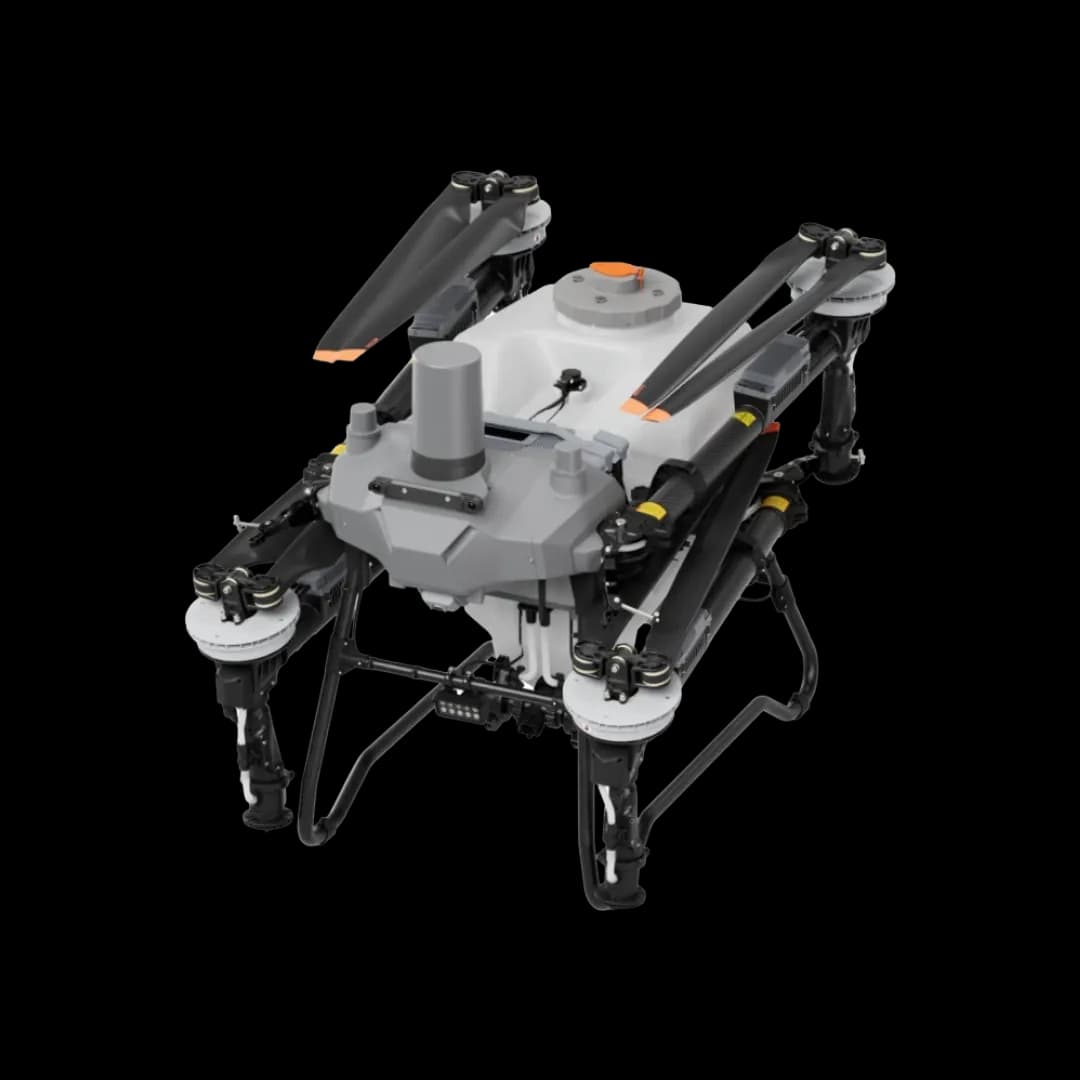

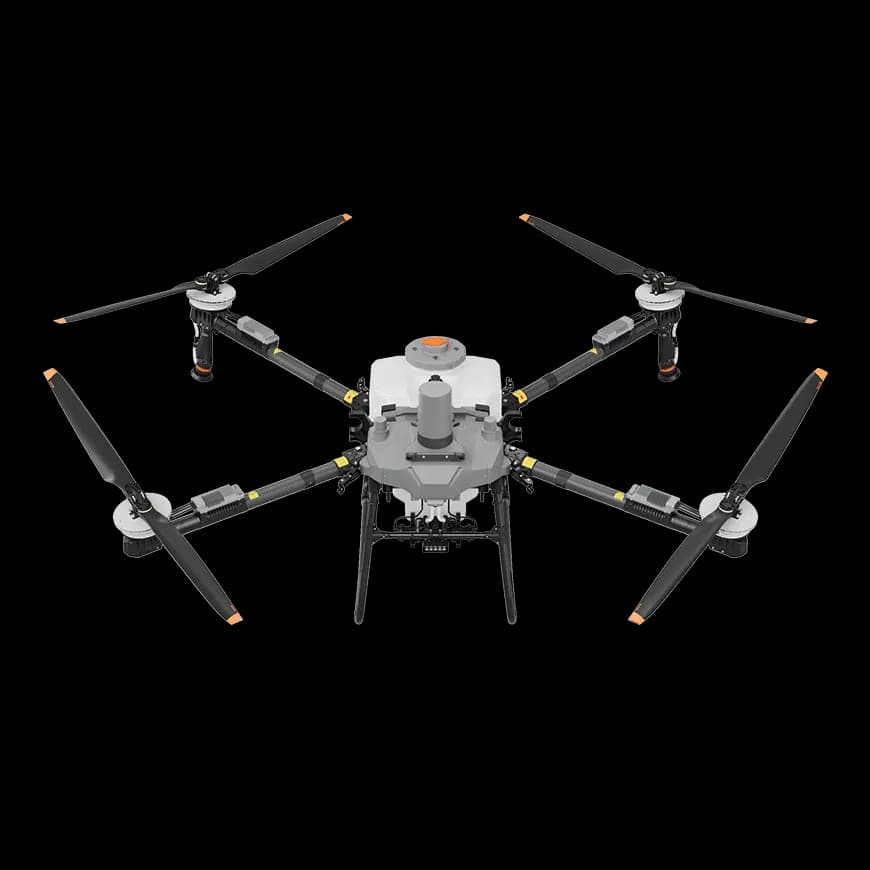

Agras T70P

Aircraft

• Weight (Without Battery): Approx. 38 kg
• Weight (With Battery): Approx. 50 kg
• Max Takeoff Weight (Spraying): 90 kg
• Max Takeoff Weight (Spreading): 101 kg
• Operating Temperature: 0°C to 40°C
• RTK Positioning: Supported
• GNSS: GPS + RTK Positioning System
• Max Operating Speed: 13.8 m/s
• Folded Dimensions: 1125 × 750 × 850 mm

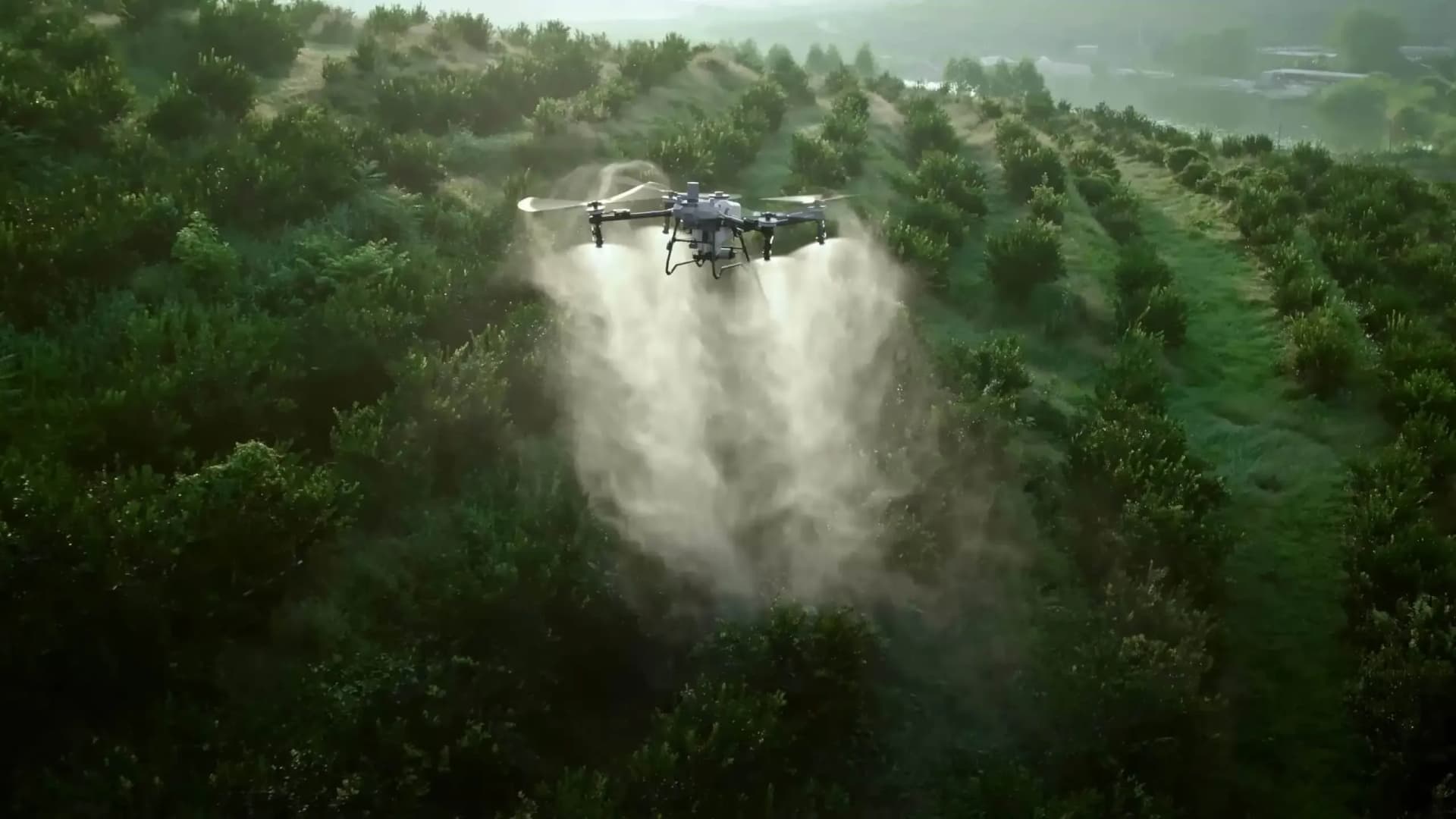

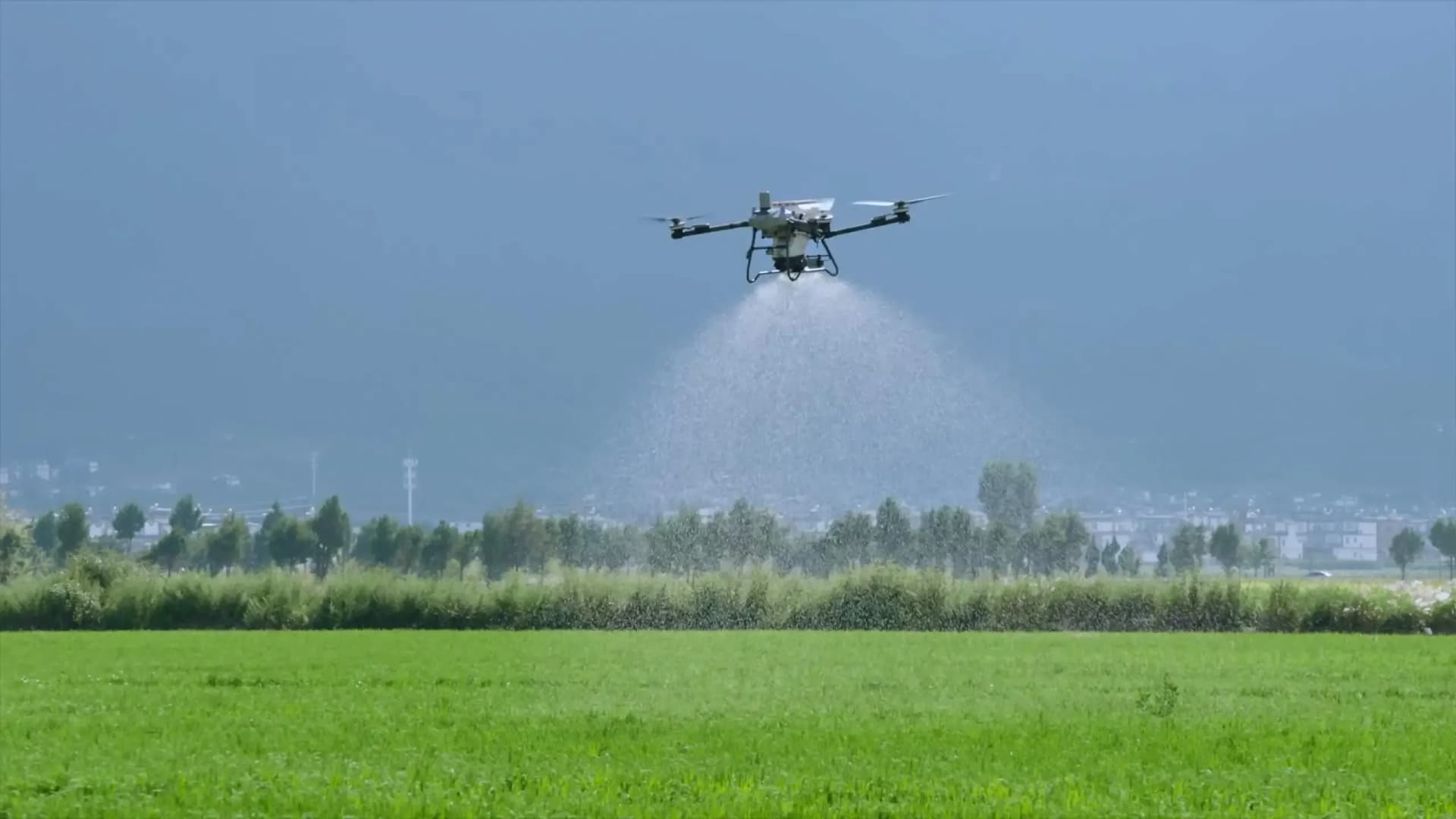

Spraying System

• Tank Capacity: 70 L
• Operating Payload: 70 kg
• Spraying System: Dual Atomization Centrifugal Sprinklers
• Standard Flow Rate: Up to 30 L/min
• Optional Flow Rate: Up to 40 L/min
• Droplet Size: 50–500 μm
• Effective Spray Width: 4–11 m

Spreading System 4.0

• Tank Capacity: 100 L
• Payload Capacity: 70 kg
• Material Size: 0.5–10 mm
• Max Discharge Rate: Up to 400 kg/min
• Effective Spreading Width: 3–10 m
• Real-Time Weighing: Supported
• Automatic Calibration: Supported

Lifting System

• Maximum Lifting Capacity: 65 kg
• Multi-Scenario Transport Support
• Agricultural & Utility Applications

Safety System 3.0

• Tri-Vision Sensor System
• Front Millimeter-Wave Radar
• Rear Millimeter-Wave Radar
• Terrain Following
• Obstacle Avoidance
• Power Line Detection
• Automatic Obstacle Bypassing

Mapping & Intelligent Features

• Automatic Field Mapping
• Field Route Planning
• Variable Rate Application
• Smart Agriculture Workflows
• One-Tap Operation
• Intelligent Terrain Tracking

FPV Camera

• Color FPV Camera
• Night Operation Support
• Real-Time Monitoring
• Electronic Stabilization

Transmission System

• System: DJI O4 Agriculture
• Offline Operations: Supported
• RTK Network Support
• Long-Range Agricultural Communication

Remote Controller

• 7-Inch High-Brightness Display
• Agricultural Mission Planning
• RTK Support
• Enterprise Flight Control Interface

Battery

• High-Capacity Intelligent Flight Battery
• Fast Charging Support
• Designed for Continuous Agricultural Operations
