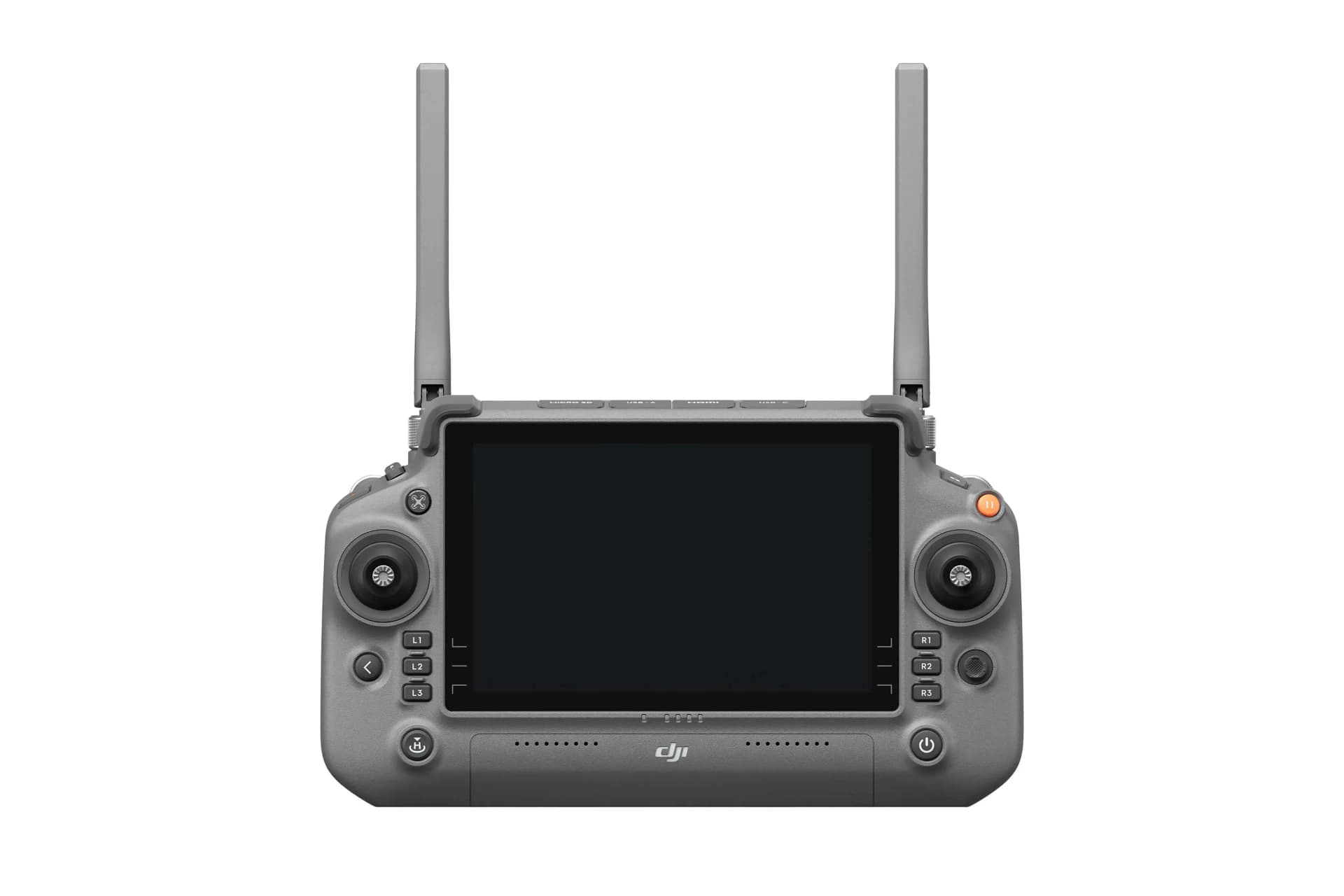

DJI RC Plus

Display

• Screen Size: 7 Inches
• Resolution: 1920 × 1200
• Brightness: 1200 nits
• Touchscreen: Multi-Touch Supported
• Display Type: High-Brightness LCD

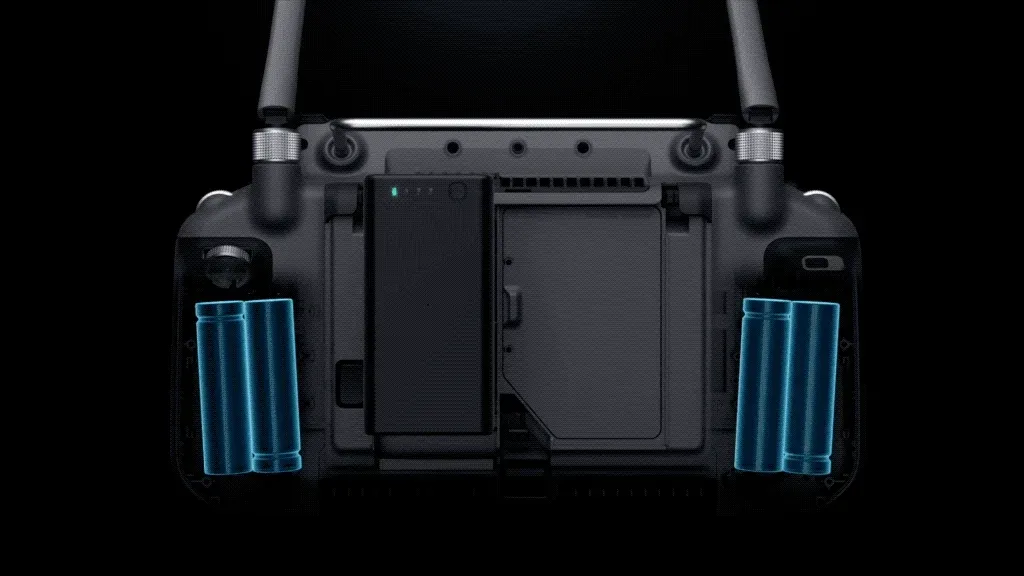

Battery

• Internal Battery: 6500 mAh
• External Battery: WB37 Supported
• Operating Time: Up to 3.3 Hours (Internal)
• Extended Operating Time: Up to 6 Hours (with WB37)
• Hot-Swap Support: Yes

Transmission System

• Enterprise Version: DJI O3 Enterprise
• Inspire 3 Version: DJI O3 Pro
• Maximum Transmission Distance (FCC): Up to 15 km
• Maximum Transmission Distance (CE): Up to 8 km
• Dual External Antennas
• Stable HD Video Transmission

Durability

• Protection Rating: IP54
• Operating Temperature: -20°C to 50°C
• Dust Resistant
• Water Resistant

Hardware

• Processor: 8-Core High-Performance Processor

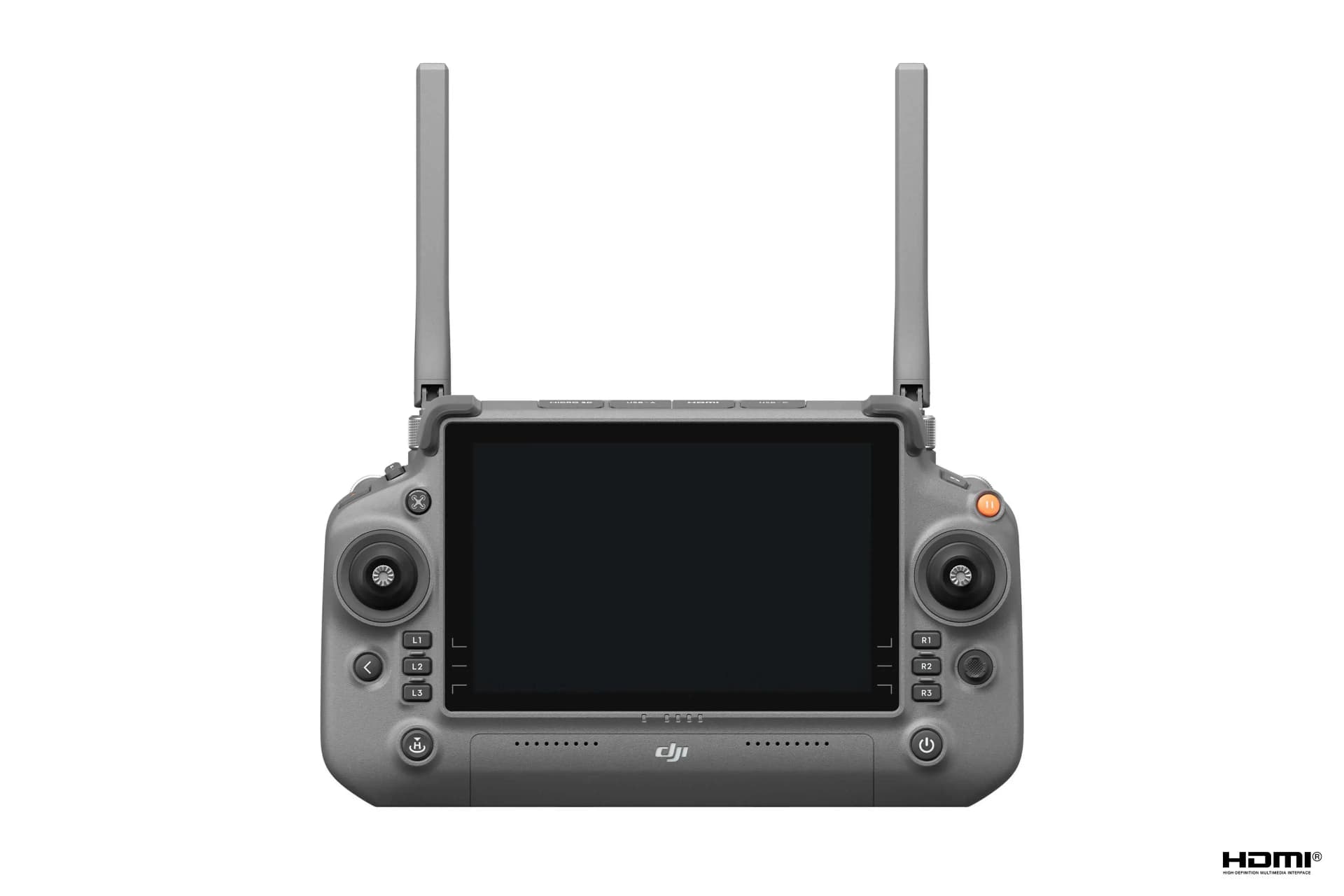

• HDMI Output: Supported
• USB-C Port: Supported
• Wi-Fi: Supported
• Bluetooth: Supported
• microSD Card Slot: Supported

Physical Specifications

• Dimensions: 268 × 162.7 × 94.3 mm
• Weight: Approx. 1.25 kg (without external battery)
• Weight: Approx. 1.42 kg (with external battery)

Enterprise Features

• Customizable Buttons
• DJI Pilot 2 Support
• Mission Planning Support
• Enterprise Workflow Integration
• Public Safety Ready
• Industrial Inspection Ready

Compatibility

Enterprise Version

• DJI Matrice 30 Series
• DJI Matrice 300 RTK
• DJI Matrice 350 RTK

Inspire Version

• DJI Inspire 3 Only
